Sub Vontron reverse Osmosis Membrane for liquid treatment

    Buy cheap Sub Vontron reverse Osmosis Membrane for liquid treatment from wholesalers

    Buy cheap Sub Vontron reverse Osmosis Membrane for liquid treatment from wholesalers
    • Buy cheap Sub Vontron reverse Osmosis Membrane for liquid treatment from wholesalers
    • Buy cheap Sub Vontron reverse Osmosis Membrane for liquid treatment from wholesalers
    • Buy cheap Sub Vontron reverse Osmosis Membrane for liquid treatment from wholesalers

    Sub Vontron reverse Osmosis Membrane for liquid treatment

    Ask Lasest Price
    Brand Name : JM
    Model Number : 4040-XLP
    Certification : NSF
    Price : 61
    Payment Terms : Western Union, MoneyGram
    Supply Ability : 10000
    Delivery Time : 3 work days
    • Product Details
    • Company Profile

    Sub Vontron reverse Osmosis Membrane for liquid treatment

    4040-XLP RO membrane


    Welcome trial order !

    Sub Vontron reverse Osmosis Membrane for liquid treatment

    1.RO membrane Technical parameter


    MEMBRANE ELEMENT SPECIFICATION: 4040 XLP LOW PRESSURE
    PERFORMANCE:

    Permeate Flow:

    Stable Salt Rejection:

    Operation Pressure:

    1500 GPD

    98.5%

    100 PSI (6.9 Bar)

    TYPE:

    Configuration:

    Membrane Polymer:

    Membrane 0 Ring:

    Extra Low Pressure Spiral

    Composite Polyamide

    EPDM

    APPLICATION DATA:

    Maximum applied pressure:

    Maximum power flow:

    Maximum operating temp

    Feed water pH range:

    Maximum turbidity of the feed water:

    Maximum SDI of the feed water: Maximum chlorine concentration:

    Maximum pressure drop:

    600 PSI (4.14 MPa);

    75 GPM (17.0 m3 / h);

    45 C ;

    2.0 〜11.0;

    <1.0 NTU;

    <5.0;

    <0.1 ppm;

    15psi.


    TEST CONDITIONS:

    The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions: The Dimension: 4''/ 99 mm (diameter) × 40''/ 1016 mm (length)

    RO membrane

    2.RO membrane Reference sheet of replaceable model


    Comparison table of JM brand conventional industrial reverse osmosis membrane

    Tap water series


    TYPEModelSTABLE SALT REJECTION(%)PERMEATE FLOW(%)TEST CONDITON
    TEST PRESSURENaClPERMEATE RECOVERYREPLACEABLE
    psippm(%)

    Extremely low pressure

    RO membrane

    8040-XLP98.51050010050015VONTRON XLP12-8040

    Extremely low pressure

    RO membrane

    4040-XLP98.5240010050015VONTRON XLP11-4040

    Tap water series ultra-low pressure and ultra-low pressure reverse osmosis membrane elements,

    Its operating pressure is 2 / 3 of that of conventional low-pressure membrane. It has the advantages of high desalination rate, low water pressure operation and high water yield. It is specially developed for tap water and brackish water under low pressure.


    3.Why choose our RO membrane?


    Why choose our RO membrane?

    1.RO membrane Long working time.


    We have produced reverse osmosis membrane since 2005,We are one of the earliest reverse osmosis membrane manufacturers in China.


    2.With full series and models of RO membranes


    Industrial RO membrane: Anti pollution RO membrane (FR), Ultra-low pressure RO membrane (p-ro / ULP),Low pressure RO membrane (LP), extremely low pressure RO membrane (XLP), seawater desalination membrane (SW), Nanofiltration membrane (HD),Special RO membrane (DT, ST)

    Commercial RO membrane: 4021,2540,2521

    Domestic RO membrane: domestic Nanofiltration membrane (NF), domestic RO membrane


    3. Stable performance of RO membrane:


    In China, we are the only manufacturer with in-depth cooperation with famous brand`s manufacturer, such as LG, Dupoint (Dow), Hydranutics... etc. We have learned a lot of advanced technology and valuable experience from them, the performance of our membrane is very stable.


    4. We are the only OEM manufacturer of LG RO membranes in China. We have been processing LG reverse osmosis membrane since 2013.


    5. Reverse osmosis membrane quality assurance:


    Three years limited warranty


    6,Short lead time:


    Normally 3-5 days (production speed: 250 PCS / day)


    7.Cheap price


    8.What is the M.O.Q for OEM.


    The M.O.Q of 8 inch RO membranes is 50 pcs. The M.O.Q of 4” RO memabranes is 100 PCS.


    9.Our membranes can replace other international brands of RO membranes, please refer to bellowing table.


    Same of the performance parameters and dimensions. Details please check technical data sheet.


    Type of membraneOur modelAlternative brandsReplace models
    Low pressure RO Element8040 P-ROVONTRONULP-8040
    Low pressure RO Element4040 P-ROVONTRONULP-4040
    Fouling Resistant RO Element8040-FRDupointBW30FR-400
    Ultra low pressureRO Element8040-ULPVONTRONULP-8040
    Ultra low pressureRO Element4040-ULPVONTRONULP-4040
    Low pressure RO membrane8040-LPDupointBW30-400
    Low pressure RO membrane4040-LPVONTRONLP-4040
    Extremely low pressure RO membrane8040-XLPVONTRONXLP12-8040
    Extremely low pressure RO membrane4040-XLPVONTRONXLP11-4040
    Seawater desalination membrane8040-SWDUPOINTSW30HR-380
    Seawater desalination membrane4040-SWDUPOINTSW30HR-4040
    Separated nanofiltration membrane8040-HDKSUEZDK8040F30
    Aqueous nanofiltration membrane8040-HDWSUEZHP8040F30
    4.RO membrane Technical data and industry information

    5.Exterior view of our plant


    RO membrane

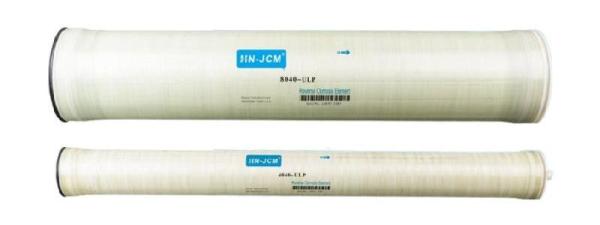

    6.Photos of RO membrane


    6.Photos of RO membrane


    RO membrane


    “LG RO membrane” Production base of the Chinese factory”


    RO membrane



    DOW RO membranes
    DOW RO membranes
    DOW RO membranes
