    Auto Regeneration Fleck 5600 Control Valve , 5600 Water Softener UV Resistant

    Ask Lasest Price
    Brand Name : FLECK
    Model Number : 5600
    Certification : CE ;NSF ; ISO9001
    Price : Negotiable
    Payment Terms : L/C,D/P,T/T,MoneyGram payments for offline orders, Western Union, MoneyGram
    Supply Ability : 500 Set/Sets per Month
    Delivery Time : 3 to 5 working days
    • Product Details
    • Company Profile

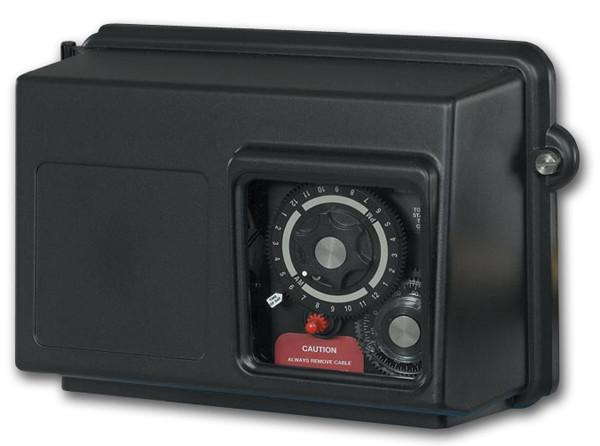

    Auto Regeneration Fleck 5600 Control Valve , 5600 Water Softener UV Resistant

    Water Treatment Equipment Fleck Water Softener Control Valve Timer

    Economical, Time-Tested
    Designimple mechanical design is easy to use
    Non-corrosive. UV-resistant, fiber-reinforced polymer valve body
    Injector/drain modules containing the brine valve, flow controls, and injector are removable from the valve's exterior
    Ruggedly-built timer is designed with heavy-duty 3/8" wide plastic gears
    5600 controls are user-friendly and easily programmable
    Choice of 7-or 12- day clock or demand regeneration with a mechanical meter
    Economical - small annual power consumption, keeps the time and activates the piston/valve mechanics with a single motos
    Designed with double backwash
    Continuous service flow rate of 20 GPM with a backwash of 7 GPM

    Details


    Fleck 5600 Control Valves Product Details

    Flow Rates: (50 PSI Inlet)

    • Continuous (15 psi drop): 20 gpm
    • Peak (25 psi drop): 26 gpm
    • Max Backwash (25 psi drop): 7 gpm

    • Valve Material: Noryl
    • ¾” In/Out Connections
    • 2½” – 8 NPSM Mounting Base
    • 1600 Brine System (softener)
    • Hard Water Bypass
    AMI Model No.Valve SeriesFilter or SoftenerOperationMetered/TimeredMeter Capacity Range
    YVS56BXAAS035600SoftenerMechanical7 Day timern/a
    YVS56CAAAS035600SoftenerMechanicalMeter Delay, Std. ¾”125-2,125 Gal.
    YVF56BXAAS035600FilterMechanical7 Day Timern/a
    YVS56UAADS035600 SXTSoftenerElectronicSXT Electronic Meter ¾”1-9,999 Gal
    YVS56UXADS035600 SXTSoftenerElectronicSXT Electronic Timer--
    YVF56UXADS035600 SXTFilterElectronicSXT Electronic Timer--
    • Fleck Valves shown 110v/60Hz (SE Valves are 24v/60Hz with 110v transformer); other voltages available.
    • Fleck Valves shown with 3 gpm backwash flow (indicated by last 2 digits). Other backwash flows are available (max. 7 gpm).

    Features



    Fleck 5600 Mechanical Control Valves Features

    • Injector/drain modules containing the brine valve, flow controls, and injector are removable from the valve's exterior
    • Ruggedly-built timer is designed with heavy-duty 3/8" wide plastic gears
    • 5600 controls are user-friendly and easily programmable
    • Non-corrosive, UV-resistant, fiber-reinforced polymer valve body
    • Choice of 7 or 12 day clock or demand regeneration with a mechanical meter

    Fleck 5600SXT Electronic Control Valves Features

    • Large LCD display with 48 hours of internal power backup capacitor
    • LCD display alternates between time of day, volume remaining or days to regeneration, and tank in service (twin tank systems only)
    • Compact turbine meter
    • Downflow or upflow regeneration cycles
    • Choose from 4 modes of operation: immediate meter regeneration, delayed meter regeneration, delayed time clock regeneration or day of week regeneration
    • Continuous flow rate of 20 GPM
    • Backwash capacity handles tanks up to 12" diameter for softener applications, 10" for filter applications
    • Double backwash capability

    Applications


    Applications for Fleck 5600 Control Valves

    • Water Softeners 6” to 12” diameter
    • Filters 8” – 10” diameter
    • Whole-House Water Softening
    • Whole-House Water Filtration
    • Point of Entry (POE) Filtration
    • Pretreatment to RO and other Water Treatment Systems
    • Pretreatment to Ion Exchange Systems
    • Ice Makers
    • Labs

    Parts


    Optional Equipment for Fleck 5600 Control Valves

    Fleck controls are available with the following options upon customer request:

    • 7 or 12 Day Timers, Electronic timer, Metered, Pressure Differential, and Other Regeneration Methods
    • Hot Water
    • No Hard Water Bypass
    • Manual Operation
    • Bypass Valve
    • Service Valve Operator
    • Up-Flow Regeneration

    Related Media Filtration Products

    • Mineral Tanks for Water Softeners and Media Filters
    • Tank Adapters & Tank Accessories for Water Softeners & Media Filters
    • Brine Tanks for Water Softeners
    • DOWEX Ion Exchange Resins
    • Filtration Media

    Literature


    Literature for Fleck 5600 Control Valves

    • Fleck 5600 Control Valve Brochure
    • Fleck 5600 Spec Sheet
    • Fleck 5600 Owner’s Manual
    • Fleck 5600 Service Manual
    • Fleck 5600SXT Spec Sheet
    • Fleck 5600SXT Service Manual
    • AMI Softeners and Media Filters Using Fleck Valves
    • Water Softener and Media Filtration Products


    Standard export carton packing.

    DELIVERY TIME:

    7-20 days after confirming order,detail delivery date should be decided according to
    production season and order quantity.
